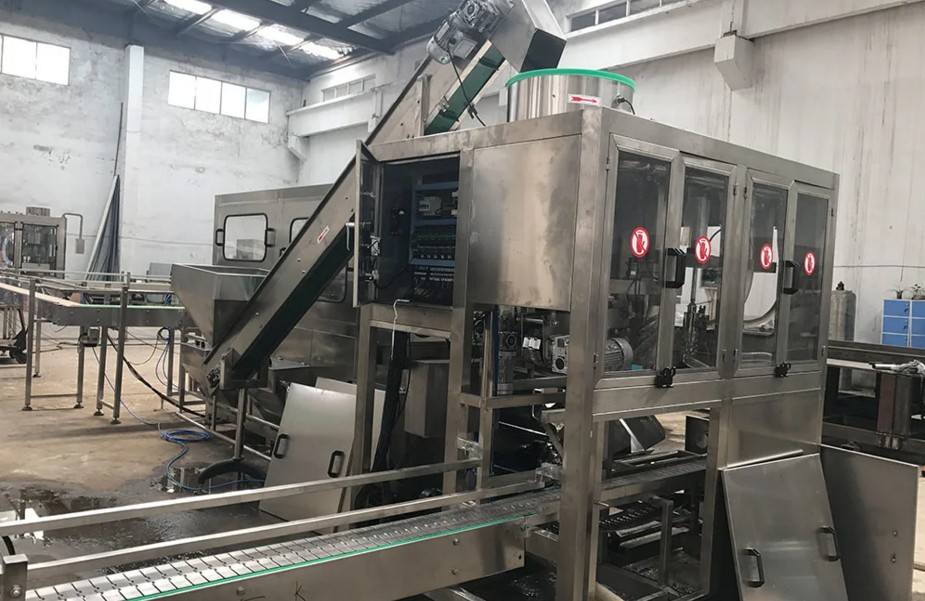

Contain following equipment:
Cap remover device, bottle outside washer , automatic bottle loading machine , rinser-filler-capper monoblock , heating shrink tunnel , conveyor system , complete line control system.and the filling speed ranges from 100BPH to 1500BPH .

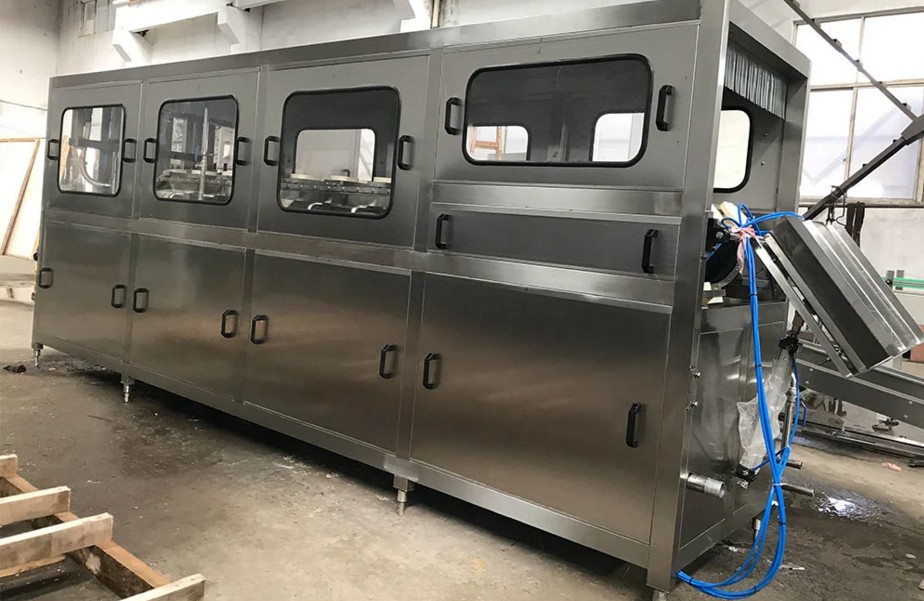

Features of 3-5 gallon water filling machine :
1.Our barreled water producing line is specially designed for 3-5 gallon drinking water;
2.The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;
3 Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically
4 In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;
5. Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, dischargingThis series of machine integrate rinsing , filling and capping , suitable for filling the pure water or the mineral water in 3 or 5 gallons
Technical:
| Модель | | | | | | | | | |
Working position ,filling heads, capping heads | | | | | | | | | |
| | 100bple | 150 бит / ч | 300BPH | 450BPH | 600BPH | 900BPH | 1200 бит / ч | 1500BPH | |
| Технические характеристики бутылки (мм) | 3gallon-5gallon D = 265-273 мм ч = 150-360 мм |
| Основная мощность двигателя (кВт) | | | | | | | | | |
